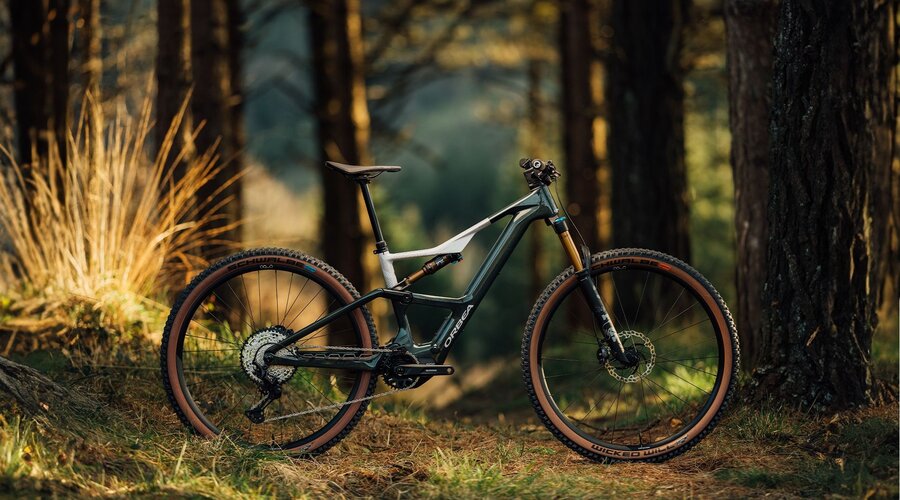

The 2025 Orbea Rise marks a significant evolution in the e-MTB landscape, offering riders a choice between two distinct models: the lightweight Rise SL and the more robust Rise LT. Here's an in-depth look at what makes this year's Rise lineup stand out.
Power and Efficiency: Shimano EP801 RS Motor
At the heart of the 2025 Rise is the Shimano EP801 RS motor. Unlike previous iterations limited to 60 Nm of torque, this version unlocks the full 85 Nm potential, providing riders with enhanced power for challenging climbs and technical terrains. Orbea's RS software fine-tunes the motor's output, ensuring a natural and efficient ride experience. Riders can switch between two profiles: "RS" mode offering 54 Nm for a more natural feel, and "RS+" unleashing the full 85 Nm for maximum assistance, especially beneficial on steep ascents.
Redesigned Frame: Stiffer and More Capable
Orbea has overhauled the Rise's frame, introducing a stiffer carbon construction with refined kinematics. The front triangle features an asymmetric design with a new reinforcement tube from the downtube to the shock mount, increasing stiffness by 8–15% depending on size. The rear triangle benefits from larger cross-section chainstays and a new linkage, enhancing rear-end stiffness by 14%. These updates aim to improve handling and responsiveness without adding extra weight.
Geometry and Suspension: Tailored for Every Trail

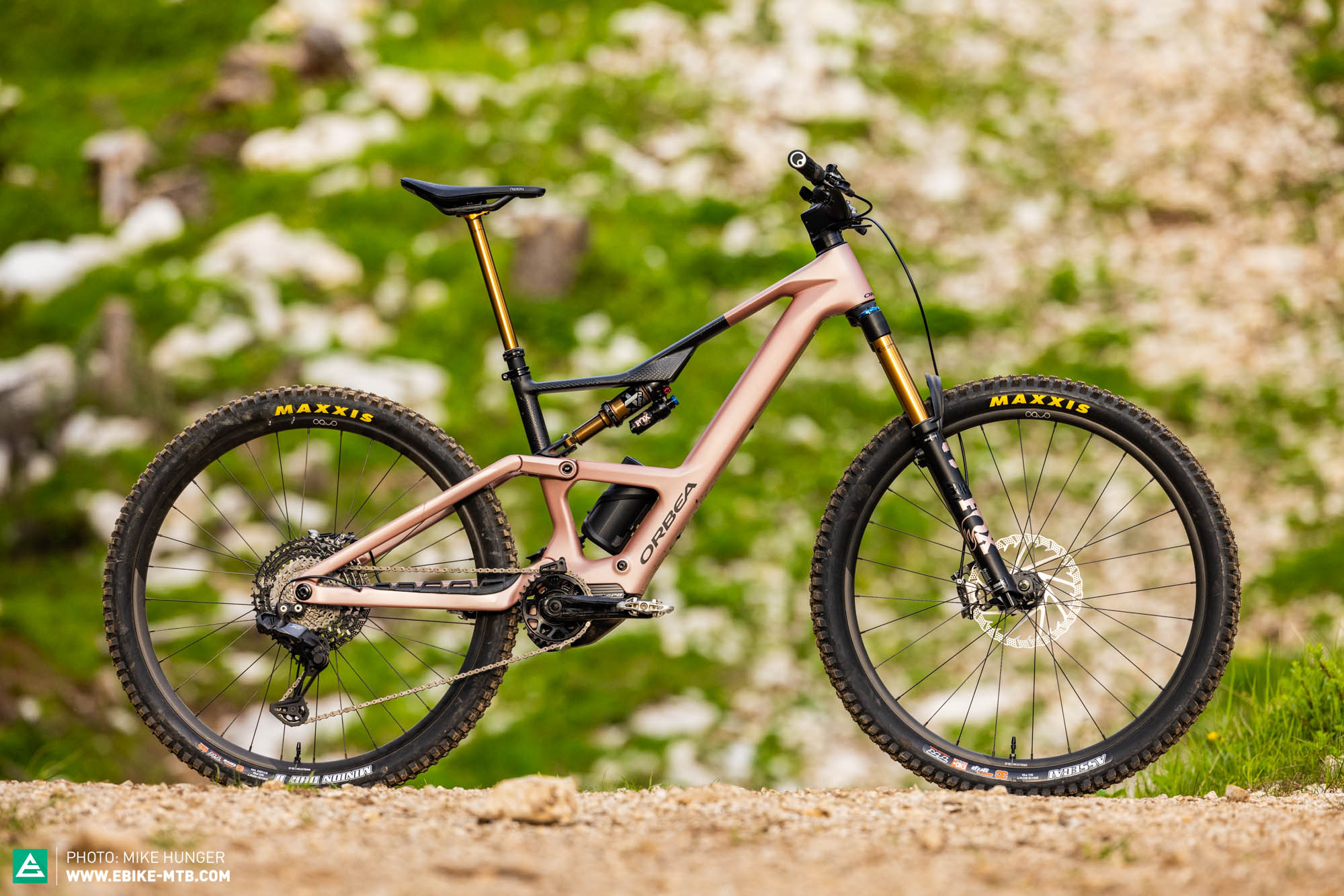

Rise LT (Long Travel):
- 160mm front and 150mm rear suspension travel.
- Equipped with a flip-chip in the shock linkage, allowing riders to adjust the head angle between 64° and 64.5°, and bottom bracket height by 8mm.
- Designed for aggressive trail riding, offering stability on descents and agility on climbs.
- Compatible with up to 230mm dropper posts, thanks to a redesigned seat tube.

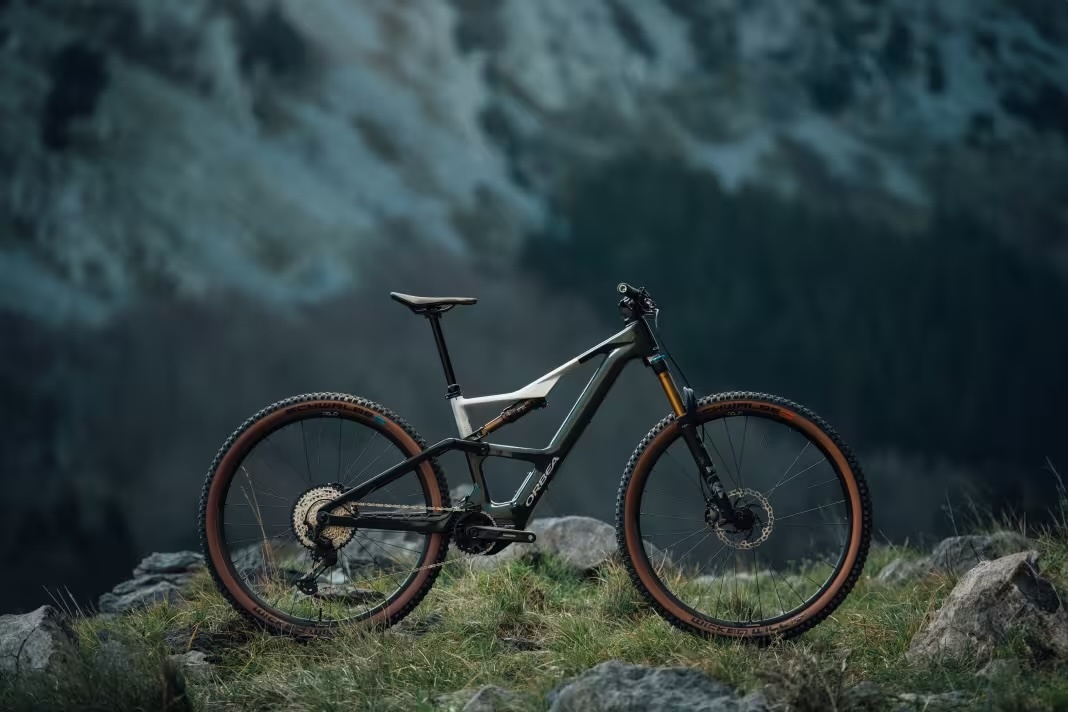

Rise SL (Super Light):
- 140mm suspension travel front and rear.
- Features a carbon fiber shock link without geometry adjustment to save weight.
- Aimed at riders seeking a lighter bike for long-distance singletrack adventures.
- Shares the same front and rear triangle as the LT but with different shock linkage and build kits.
Battery Options: Extended Range for Extended Rides
The 2025 Rise offers two battery configurations: a standard 430Wh battery and an optional 630Wh battery. For those opting for the 430Wh version, a 210Wh range extender is available, increasing total capacity to 640Wh. This modular approach allows riders to balance weight and range based on their riding preferences.
Customisation and Rider-Centric Features
Orbea continues to prioritise rider customisation through its MyO Configurator, enabling choices in frame paint and component selection. Additional thoughtful features include:
- Integrated Multi-Tool: The Fully Loaded Pivot provides easy access to a multi-tool for on-the-go adjustments.
- Enhanced Protection: Expansive chainstay protection minimises chain slap, and fully sealed bearings with O-Rings prevent water and dirt ingress.
- Clean Aesthetics: Internal cable routing via the SIC headset system offers a sleek cockpit design.
Conclusion: A Versatile E-MTB for Diverse Riders
The 2025 Orbea Rise successfully caters to a broad spectrum of riders. Whether you're an enduro enthusiast seeking the robust capabilities of the Rise LT or a trail rider desiring the lightweight agility of the Rise SL, Orbea's latest offerings provide tailored solutions without compromising on performance or customisation.
For those in and around Stroud, come and visit us at The Ark Cycles to see the 2025 Orbea Rise in person. Whether you’re drawn to the long-travel capability of the LT or the nimble feel of the SL, we’ve got the expertise to help you find your perfect setup. Pop in for a chat, check out the bikes up close, and see what the buzz is all about!"
