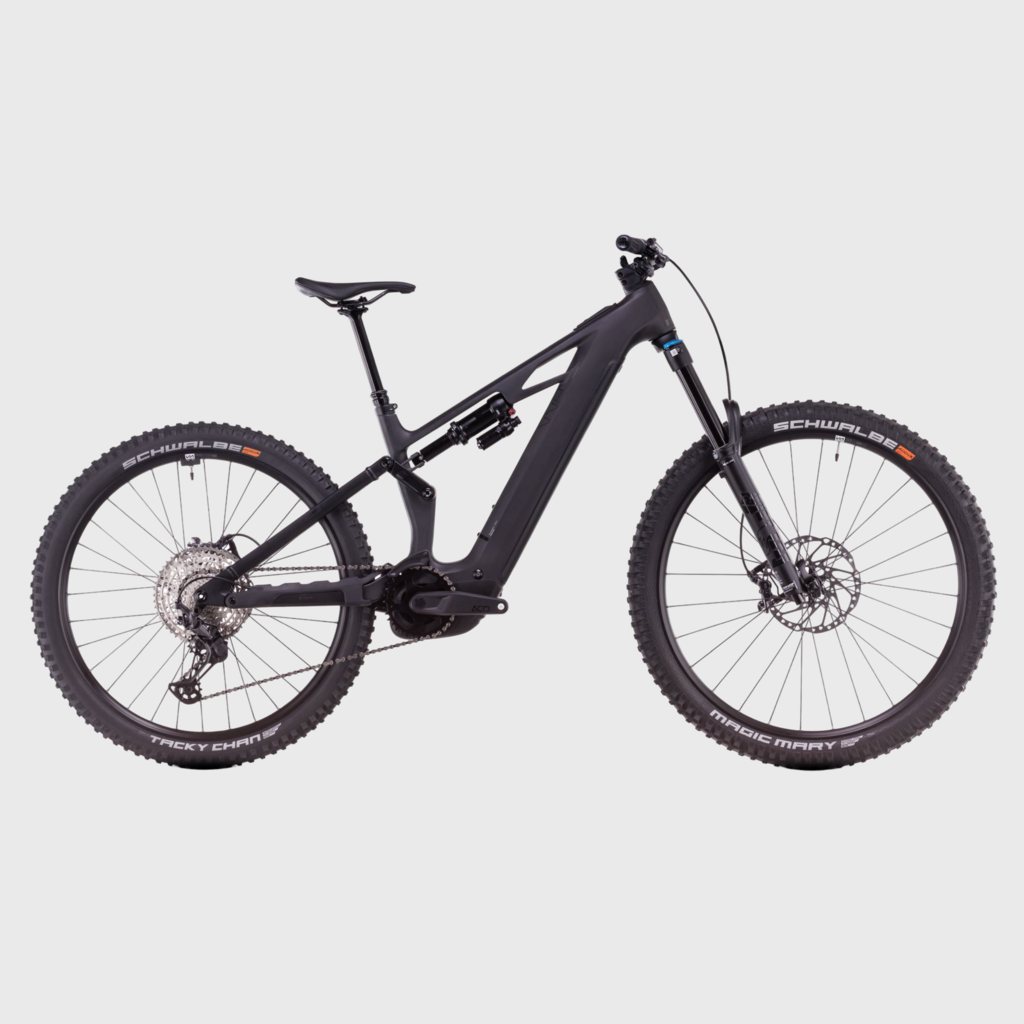

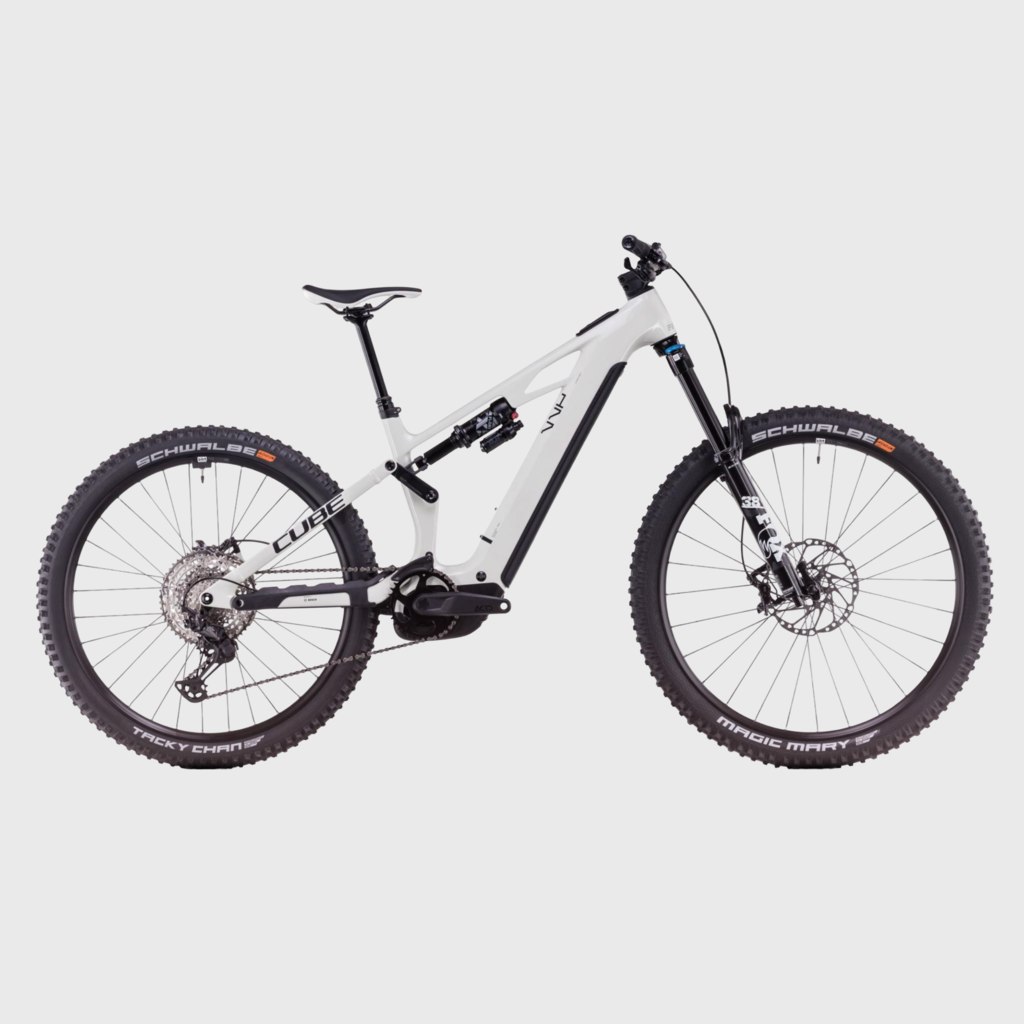

Challenging trails need a suspension setup to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX 800 a Fox Float 38 Rhythm Grip fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and 800 Wh PowerTube battery give your pedalling an unobtrusive but very effective boost, via Shimano's legendary XT 1x12 gears. Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Schwalbe Magic Mary and Tacky Tan 2.4in tyres – is held in check by Shimano's powerful, progressive XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost too, it's the perfect formula for big mountain fun.
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
Frame
Frame |
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
Fork |
Fox 38 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 170mm |
Shock |
Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever |
E-bike System
Engine |
Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System |
Battery |
Bosch PowerTube 800 |
Drivertrain and brakes
Front brake |
Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
Rear brake |
Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
Rear derailleur |
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters |
Shimano XT SL-M8100-IR, Direct Attach |
Crankset |
Acid MTB Hybrid Pro, 36T |
Cassette |
Shimano Deore CS-M6100, 10-51T |
Chain |
KMC e12 |
Cockpit
Headset |
Acros AZF-675, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
Handlebar |
Cube Rise Trail Bar 35 |
Stem |
Cube Performance Stem E-MTB 35, FPI-Link |
Handlebar tape/Grips |
Acid Disrupt, Soft Compound |
Wheels
Wheels |
Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready |
Front tyre |
Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4 |
Other parts
Saddle |
Acid Venec EMTB Trail 140 |
Seatpost |
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
Seatpost clamp |
Cube Semi-Integrated |
Pedals |
Supplied without pedals / Geleverd zonder pedalen |
