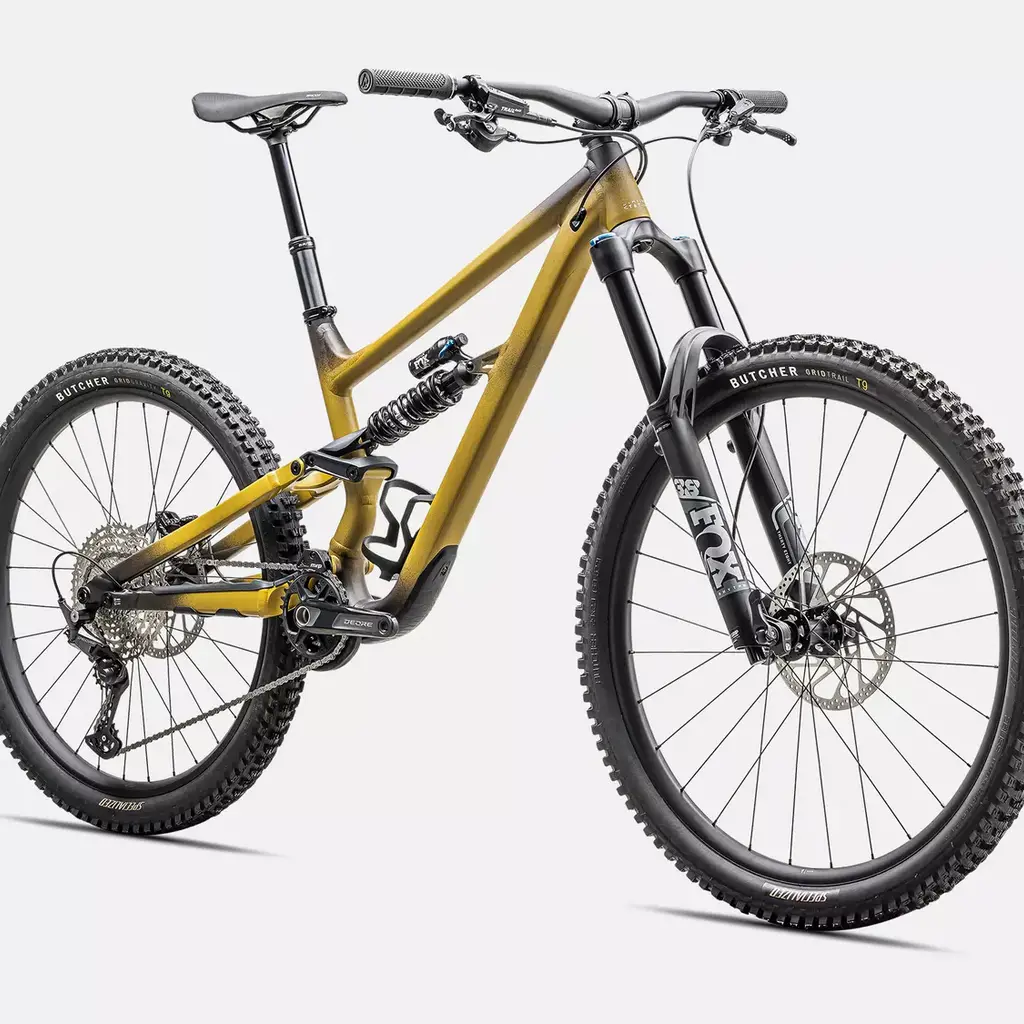

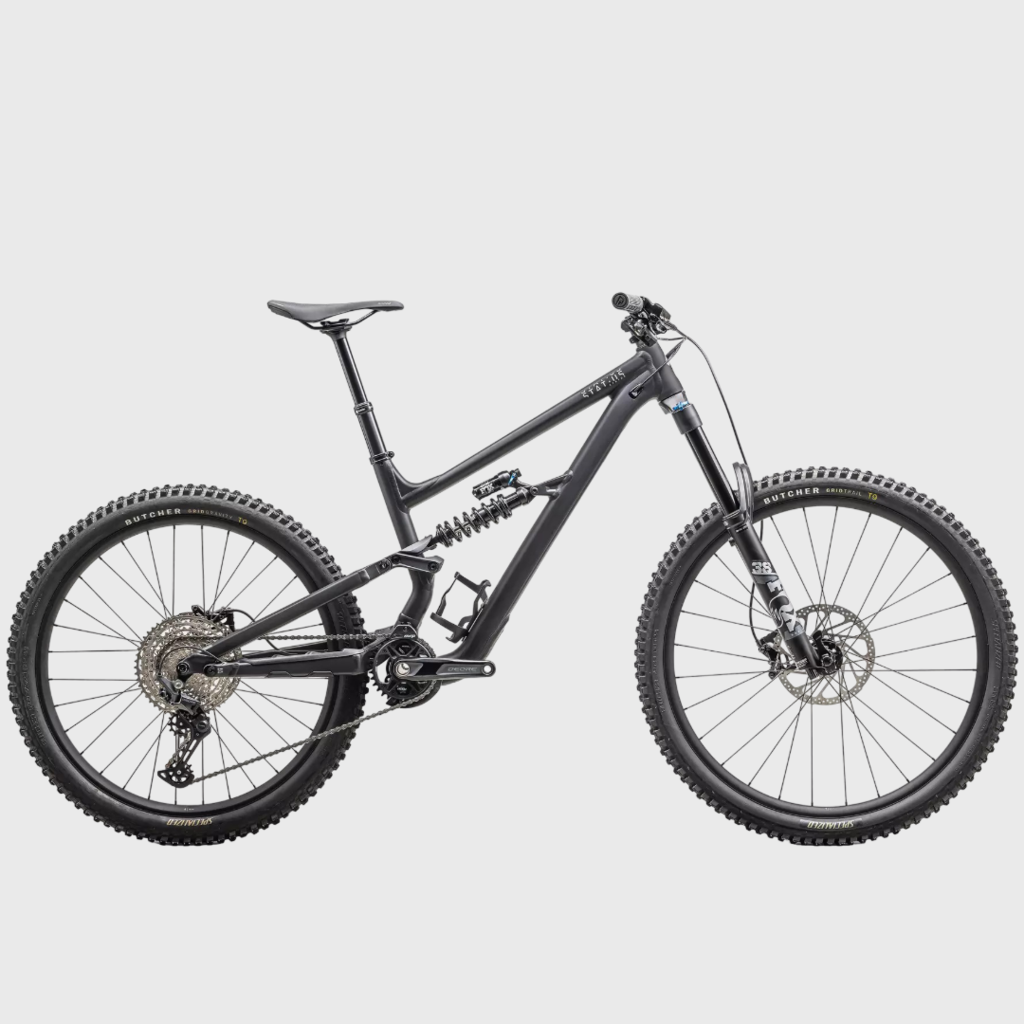

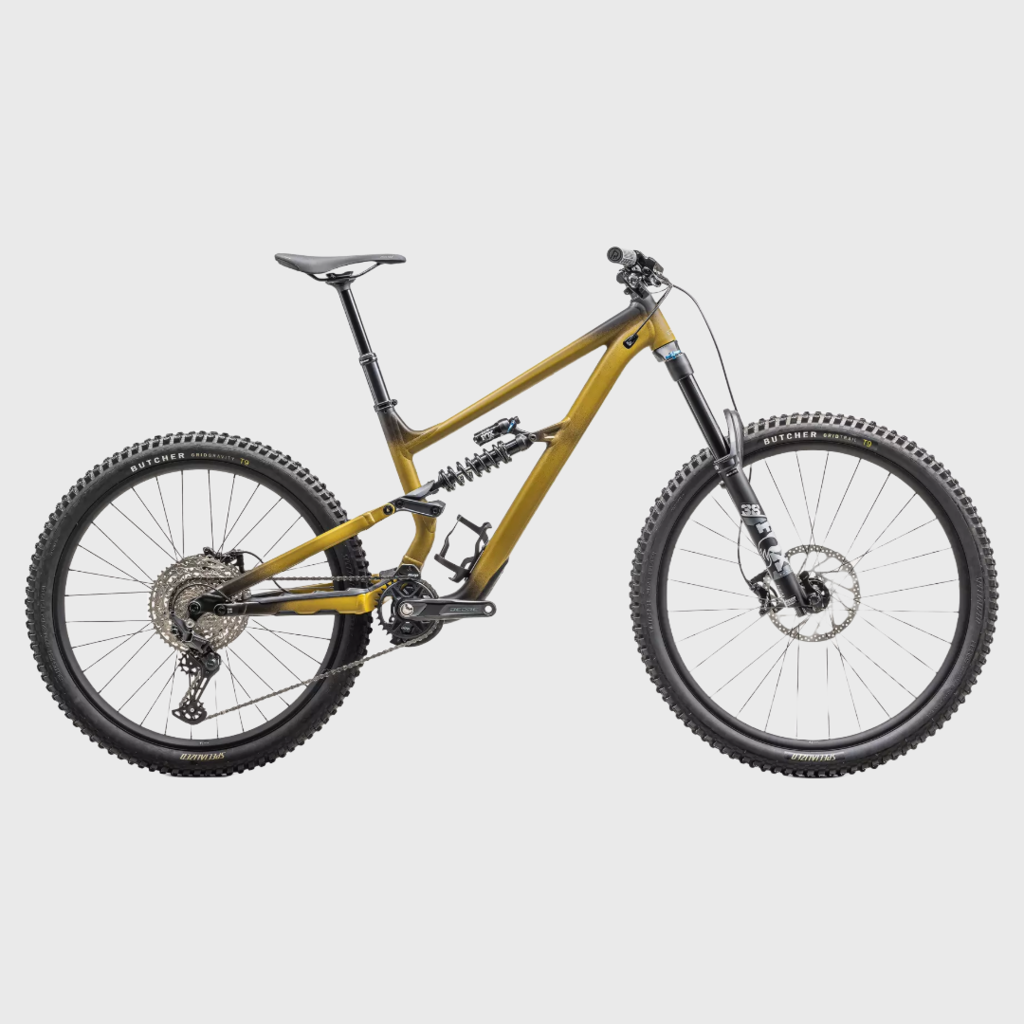

The Status 2 build all starts with the super strong M5 alloy chassis, featuring updated aggressive trail geometry and neatly placed flip chips close to the rear axle, allowing you to finely tune the frame’s geometry for your riding style and terrain.
| Fork | FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel |
| Rear Shock | FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm; S2-S5:230x62.5mm |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Bars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width; S2-S5: 800mm width |
| Front Brake | TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |
| Rear Brake | TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |
| Brake Lever | TRP Trail EVO |
| Rear Mech | Shimano Deore, M6100, 12pd, Shadow Plus |
| Shifters | Shimano Deore, M6100, I-Spec EV, 12 speed |
| Speed | 12 |
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | DT Swiss Industry |
| Front Tyre | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" |
| Rear Tyre | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Seat Post | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm |
| Saddle | Bridge Comp, Hollow Cr-mo rails, 143mm |
| Chainset | Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm |
| Chain | Shimano Deore M6100, 12spd |
| Cassette | Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
