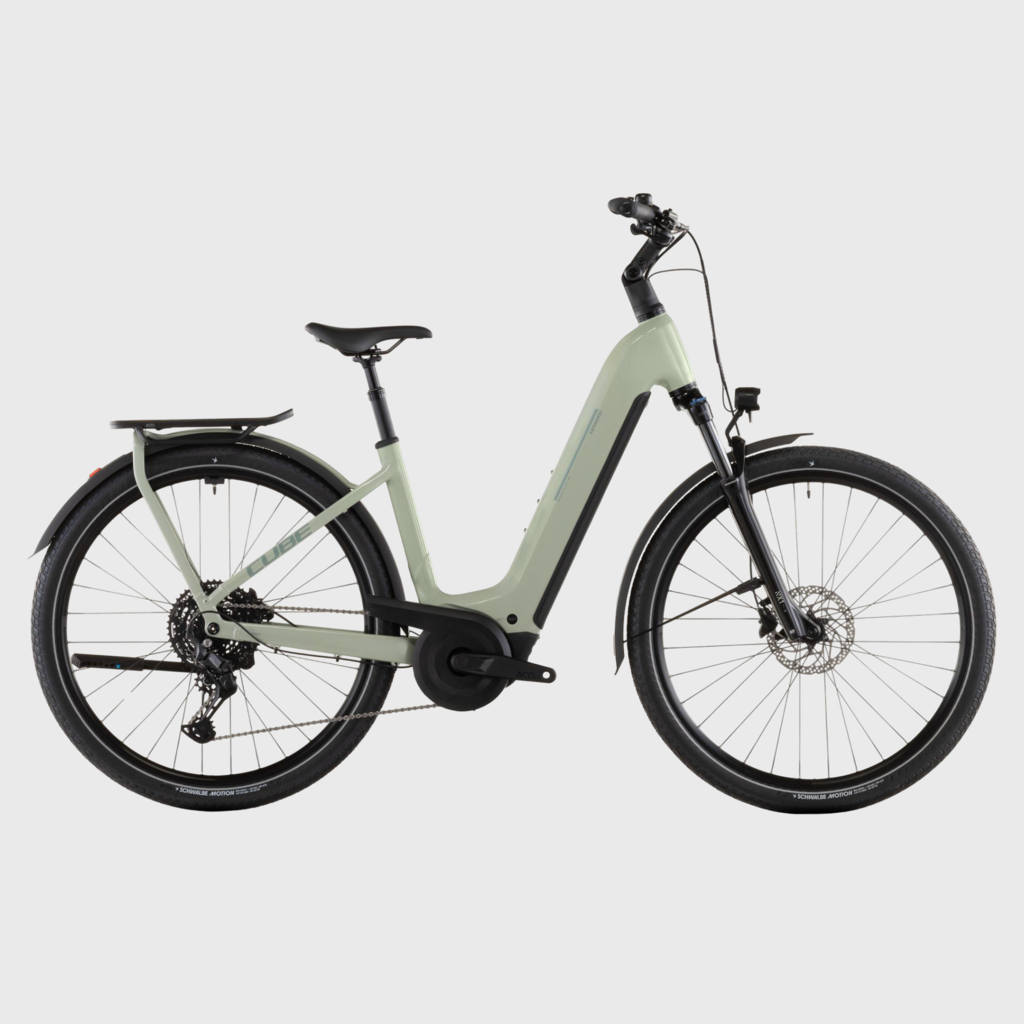

Adventure is what you make it – and the Kathmandu Hybrid ONE from CUBE will make any pedal-powered adventure better. With its 800Wh PowerTube battery and Bosch CX drive there's up to 85 Nm of pedalling assistance at your disposal. Combined with the easy shifting and wide range of Shimano's Cues 1x10 gears, it's more than enough to take on any route with ease. The Suntour air suspension fork, suspension seatpost and adjustable stem are all there to make even long days in the saddle enjoyable. Strong, dependable Shimano hydraulic disc brakes give you safe stopping in all weathers. And a full complement of accessories, including lights and mudguards to accompany our Integrated Carrier 3.0, means you're ready for anything.
Frame description
The Kathmandu Hybrid's Easy Entry frame is designed to do exactly what it says, making adventurous cycling as accessible and straightforward as possible. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
Frame
Frame |
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp |
Fork |
SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm |
E-bike System
Engine |
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
Battery |
Bosch PowerTube 800 |
Drivertrain and brakes
Front brake |
Shimano BR-MT200, Hydr. Disc Brake (180) |
Rear brake |
Shimano BR-MT200, Hydr. Disc Brake (180) |
Rear derailleur |
Shimano Cues RD-U6000-GS, 10-Speed |
Shifters |
Shimano Cues SL-U6000, Rapidfire-Plus |
Crankset |
Acid MTB Hybrid Pro, 40T |
Cassette |
Shimano Cues CS-LG300, 11-48T |
Chain |
KMC eGlide |
Cockpit
Headset |
Acros AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
Handlebar |
Cube Comfort Trail Bar, 700mm |
Stem |
Cube Comfort Stem Pro, 31.8mm, Adjustable |
Handlebar tape/Grips |
Acid Travel Comfort |
Wheels
Wheels |
Acid Pro 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Front tyre |
Schwalbe Motion Big Apple, PerfL, 55-622 |
Other parts
Saddle |
Acid Sequence 180 |
Seatpost |
Cube Suspension Seatpost HD, 31.6mm |
Seatpost clamp |
Cube Seatpost clamp |
Pedals |
Acid PP Trekking |
Front light |
Acid Front Light PRO-E 60 X-Connect, 12V, DC |
Rear light |
Acid Mudguard Rear Light PRO-E, 12V, DC |
Standard |
Acid FM Pure Kickstand |
Mudguards |
Acid 65 Integrated Carrier 3.0 |
Bell |
Easy Bell Bell |
Carrier |
Acid Integrated Carrier 3.0, CUBE Adapter Compatible |
