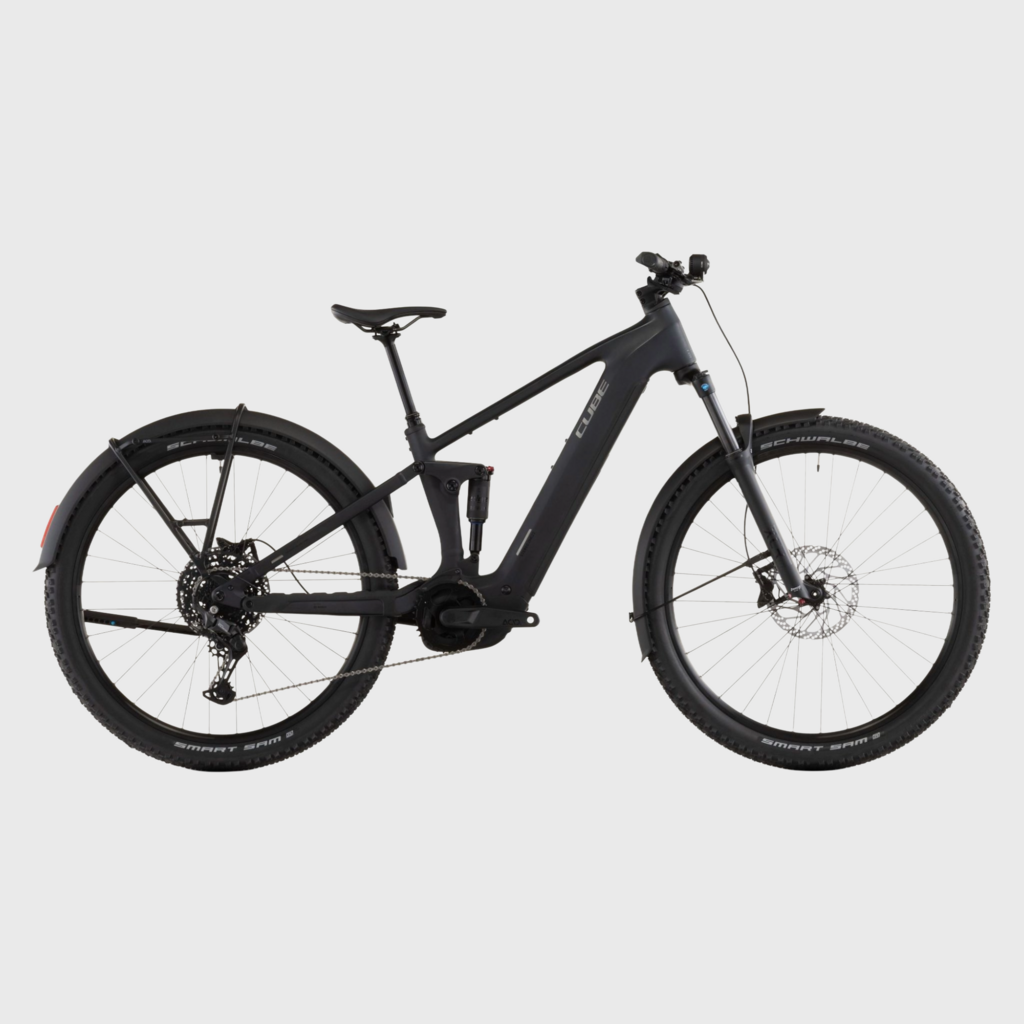

The heart of the Stereo Hybrid ONE22 FE is the Bosch CX drive and a high capacity 800Wh battery. Comfort Geometry and our proven four-bar suspension system work together to keep your wheels tracking true on even the longest rides. Integrated cable routing flatters the frame's elegant looks. A Direct Mount chain guard and UDH dropout may not sound exciting, but they're the little details that help make the difference. And, with Size Split, there's a perfectly proportioned option for pretty much every rider.
The right accessories can make a bike complete – and with the Stereo Hybrid ONE22 Pro 800 FE, we've included a complete set. There's a luggage carrier ready to take on a weekend tour or the weekday commute. Mudguards to help keep mud and water at bay. And a kickstand and lights, too. Bosch provides the powerful CX drive unit, Purion 200 controller and 800Wh battery, and we fitted Shimano's easy-to-use Cues 10-speed gears to help get you there and back. And grippy Schwalbe 2.6 in tyres with strong Shimano hydraulic disc brakes help keep you safe. It's ready for anything.
Frame
| Frame |
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
| Fork |
SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm |
| Shock |
SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount |
E-bike System
| Engine |
Bosch Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Battery |
Bosch PowerTube 800 |
Drivertrain and brakes
| Front brake |
Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Rear brake |
Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Rear derailleur |
Shimano Cues RD-U6000-GS, 10-Speed |
| Shifters |
Shimano Cues SL-U6000, Rapidfire-Plus |
| Crankset |
Acid MTB Hybrid Pro, 38T |
| Cassette |
Shimano Cues CS-LG300, 11-48T |
| Chain |
KMC eGlide |
Cockpit
| Headset |
Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Handlebar |
Cube Rise Trail Bar 35 |
| Stem |
Cube Performance Stem E-MTB 35, FPI-Link |
| Handlebar tape/Grips |
Acid Hybrid Perform |
Wheels
| Wheels |
Acid PRO 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front tyre |
Schwalbe Smart Sam, Active, 2.6 |
Other parts
| Saddle |
Acid Venec EMTB Plus 145 |
| Seatpost |
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Seatpost clamp |
Cube Seatpost clamp |
| Pedals |
Acid PP MTB |
| Front light |
Acid Front Light PRO-E 150 X-Connect, 12V, DC |
| Rear light |
Acid Mudguard Rear Light PRO-E, 12V, DC |
| Standard |
Acid FM Pure Kickstand |
| Mudguards |
Acid 65 |
| Bell |
Knog Oi |
| Carrier |
Acid Carrier SIC 2.0 Rail Boost |
