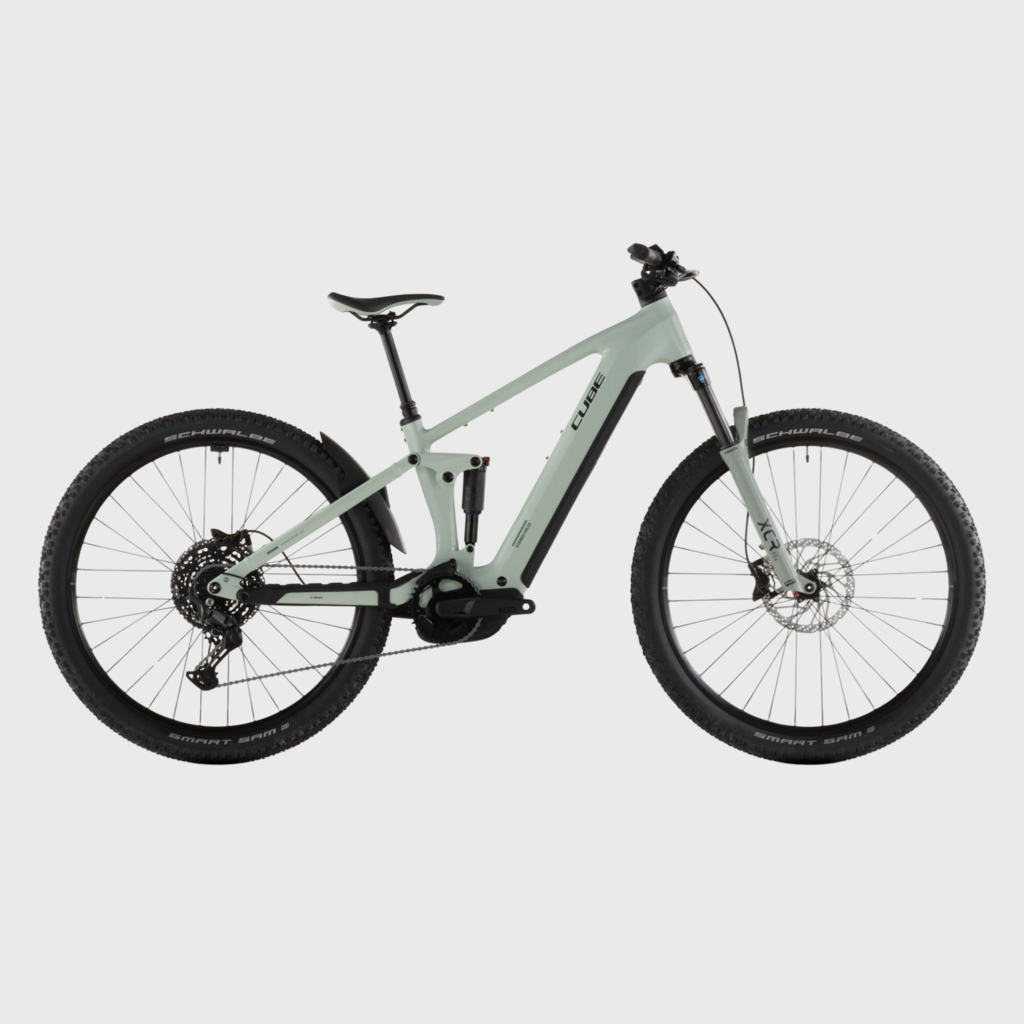

The Stereo Hybrid ONE22 Pro 800 puts you in control. With the powerful Bosch CX drive system, Purion 200 controller and 800Wh battery, you've plenty of pedal assistance for even extended exploring.
A Suntour air suspension fork and rear shock work with CUBE's proven kinematics to deliver ground-hugging comfort. Grippy Schwalbe 2.6in tyres and strong Shimano hydraulic disc brakes help control your speed. And easy-to-use Shimano Cues 1x10 gears keep you moving forward. Time for exploring...
Frame description
With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and control. We fitted an 800Wh battery to power the Bosch CX drive unit, for worry-free extended rides. The UDH dropout, integrated cable routing and Direct Mount chain guard are all examples of the attention to detail we put into all our frames. And, with Size Split, you're sure to be able to find the perfect fit.
Frame
| Frame |
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
| Fork |
SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm |
| Shock |
SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount |
E-bike System
| Engine |
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
| Battery |
Bosch PowerTube 800 |
Drivertrain and brakes
| Front brake |
Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Rear brake |
Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Rear derailleur |
Shimano Cues RD-U6000-GS, 10-Speed |
| Shifters |
Shimano Cues SL-U6000, Rapidfire-Plus |
| Crankset |
Acid MTB Hybrid Pro, 38T |
| Cassette |
Shimano Cues CS-LG300, 11-48T |
| Chain |
KMC eGlide |
Cockpit
| Headset |
Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Handlebar |
Cube Rise Trail Bar 35 |
| Stem |
Cube Performance Stem E-MTB 35, FPI-Link |
| Handlebar tape/Grips |
Acid Hybrid Perform |
Wheels
| Wheels |
Acid PRO 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front tyre |
Schwalbe Smart Sam, Active, 2.6 |
Other parts
| Saddle |
Acid Venec EMTB Plus 145 |
| Seatpost |
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Seatpost clamp |
Cube Seatpost clamp |
