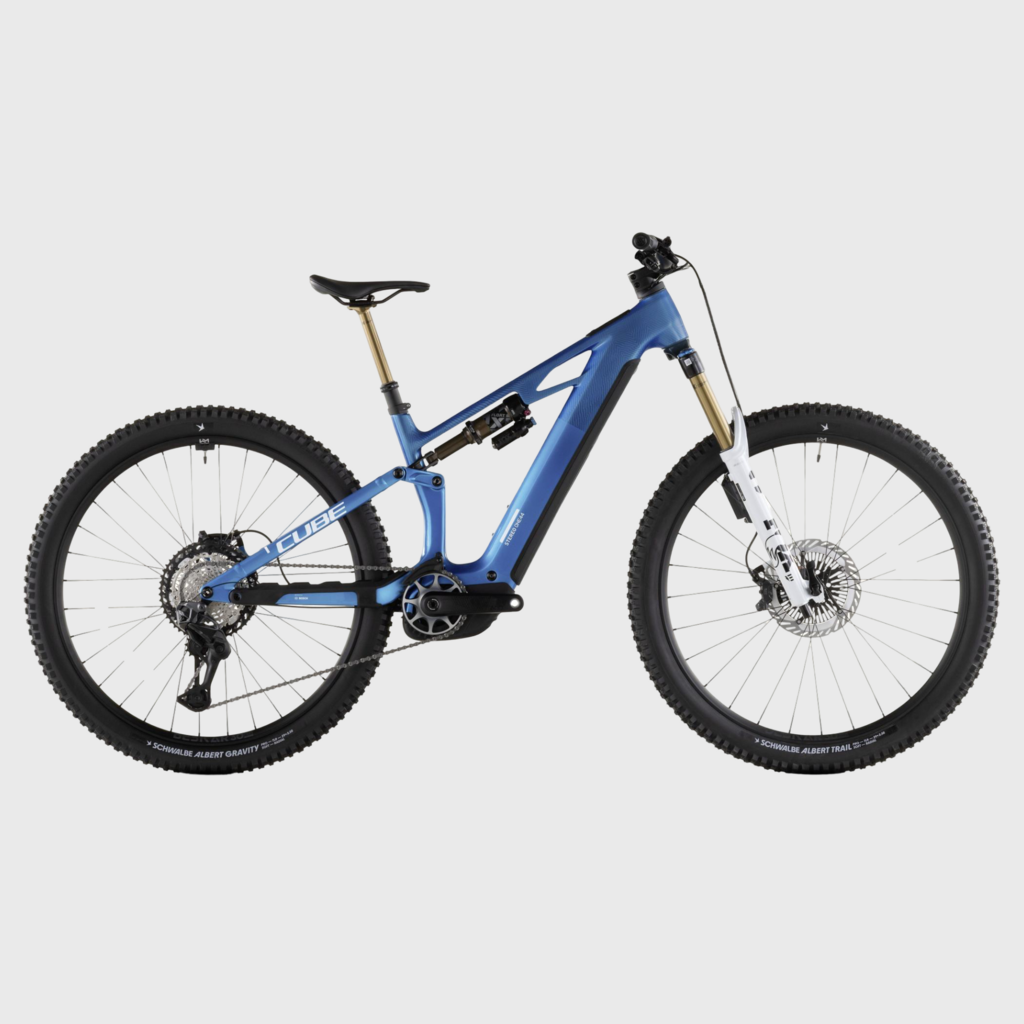

The Stereo Hybrid ONE44 HPC AT 800 is all about sweating the details to get the best from your trail riding. The 4-piston Shimano XT hydraulic brake calipers with Bosch ABS Pro harness the incredible grip of Schwalbe's 2.5in Albert tyres to deliver assured speed control, no matter the conditions. Shimano's electronic XT Di2 1x12 gears transfer the combined power of your pedalling and the Bosch CX motor – which can deliver up to 100Nm of extra torque – to the Newmen Beskar 30 wheelset via an ACID carbon crank, backed up by an 800Wh battery for the best possible range and a Kiox 400C display so you know what's what. And with a Fox 36 Float Factory fork, Float X Factory rear shock and remote dropper post, the only component missing is you.
Frame description
A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock-full of clever details. You'll notice the Internal Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, while the angle-adjustable headset means you can tailor the handling to your specific requirements. A Direct Mount chain guard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube controller plus Purion 400 display show you what's going on with the powerful Bosch CX drive and 800Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders.
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Fork |
Fox 36 Float Factory GRIPX, Tapered, 15x110mm, E-Bike Optimized, 150mm (S: 140mm) |
| Shock |
Fox Float X Factory, 230x60mm (27.5: 210x55mm), Adjustable LSC/LSR w/ 2-Pos. Lever |
E-bike System
| Engine |
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
| Battery |
Bosch PowerTube 800 |
| Display |
Bosch Kiox 400C |
Drivertrain and brakes
| Front brake |
Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203) |
| Rear brake |
Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203) |
| Rear derailleur |
Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Shifters |
Shimano XT Di2 SW-M8250-IR, Direct Attach |
| Crankset |
Acid MTB Hybrid Carbon, 27.5: 36T // 29: 34T |
| Cassette |
Shimano XT CS-M8100, 10-51T |
| Chain |
Shimano CN-M8100 |
Cockpit
| Headset |
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Handlebar |
RaceFace ERA 35 |
| Stem |
Cube Performance Stem E-MTB 35, FPI-Link |
| Handlebar tape/Grips |
Acid Disrupt |
Wheels
| Wheels |
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front tyre |
Schwalbe Albert Trail Pro, Addix Soft, Kevlar, 2.5 |
Other parts
| Saddle |
Acid Venec EMTB Trail 140 |
| Seatpost |
Fox Transfer Factory 31.6mm, Kashima Coated |
| Seatpost clamp |
Cube Semi-Integrated |
| Pedals |
Acid PP MTB |
